WAVELINK FLAT FLEXIBLE CABLE ASSEMBLIES
We offer assembly and value-added services so that your FFC is delivered to you ready to use. Some assembly services we offer includes:
- Creasing & Folding
- Punching
- Soldering
- Custom Configurations
- Custom Machined Housings
- OverMolding
- Sensor Mounting
- Ground Straps
- More Options Available
Wavelink FFC Assemblies For Reliable Connections
FFC is commonly used to connect a number of data and/or power points in a small, light weight, flexible package. It can easily be folded and fit into tight spaces. FFC can be nested and routed to form complete wire harnesses. Further, FFC can be coiled and heat formed for use in sliding drawers or clock spring mechanisms.
View a few of our Assemblies (click to enlarge) below or visit the Product Gallery.

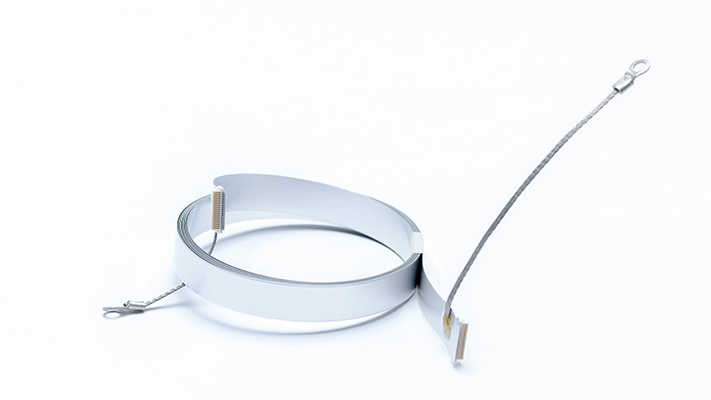

Shielded FFC with DF9 Hirose connectors and drain wire.

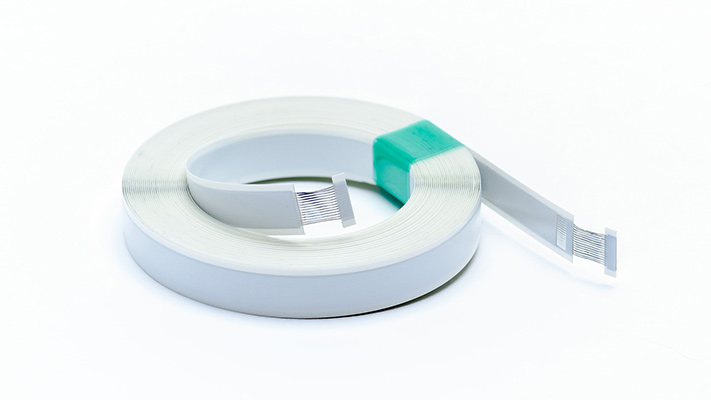

Direct Solder FFC with shield and cover layer.

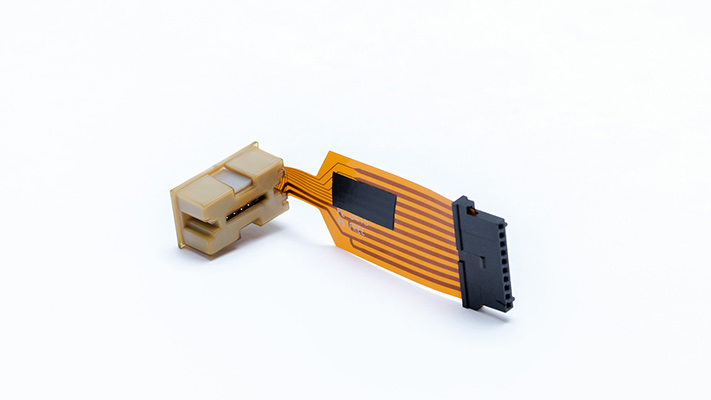

FPC crimped with receptacle housing.

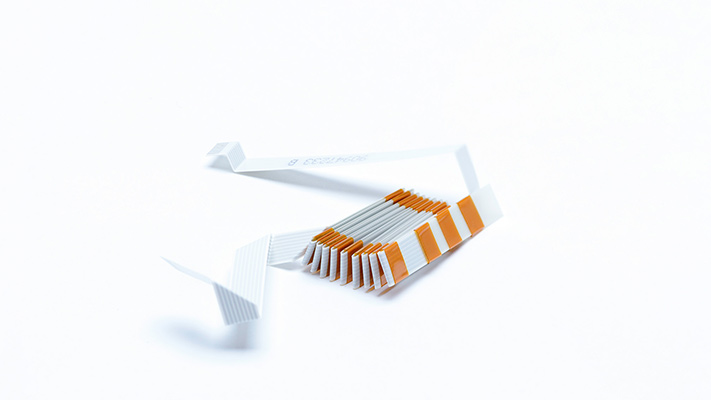

Accordian Flex Cable

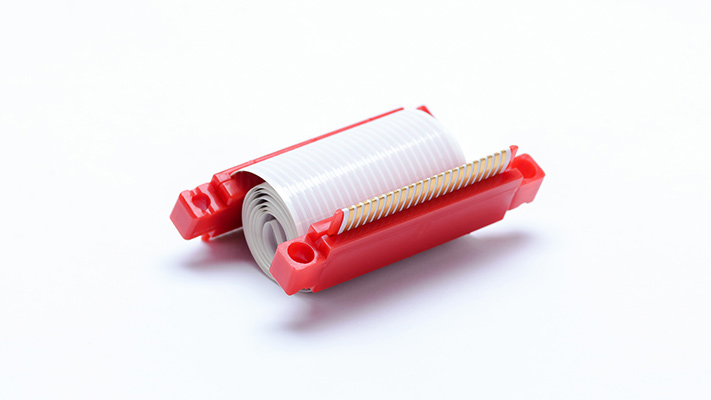

Coil formed cable

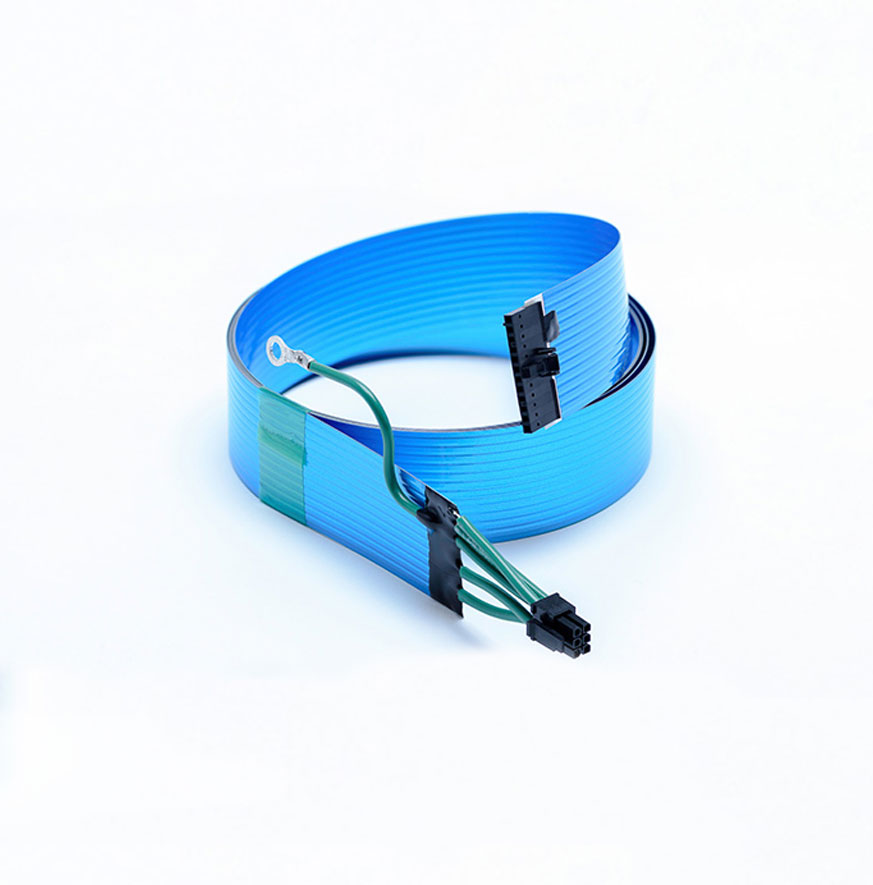

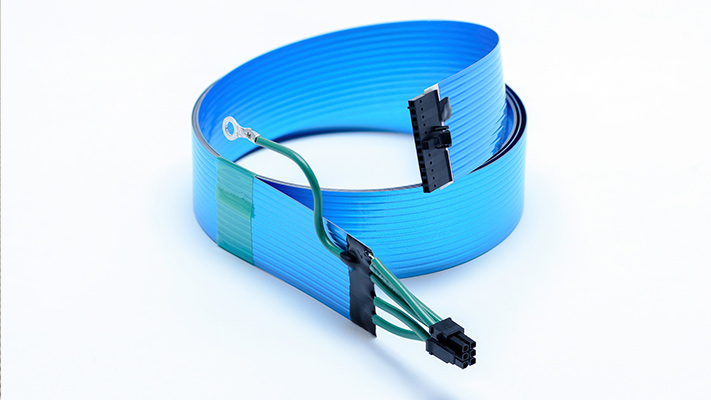

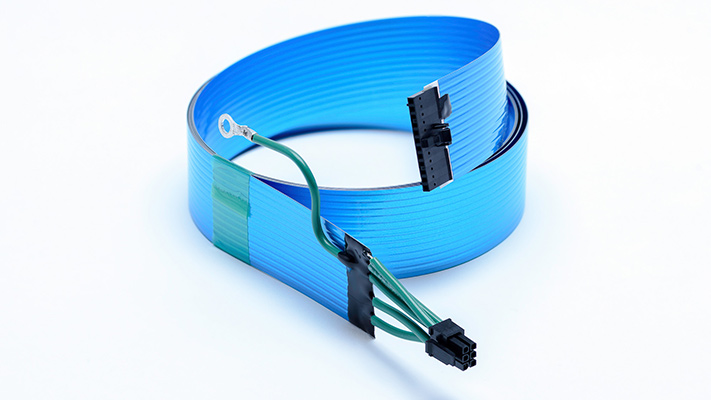

Shielded FFC to discrete wire connector.
FFC tension cable, steel reinforced

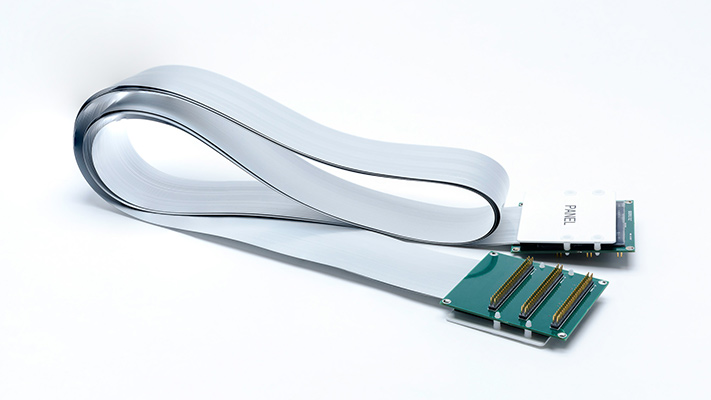

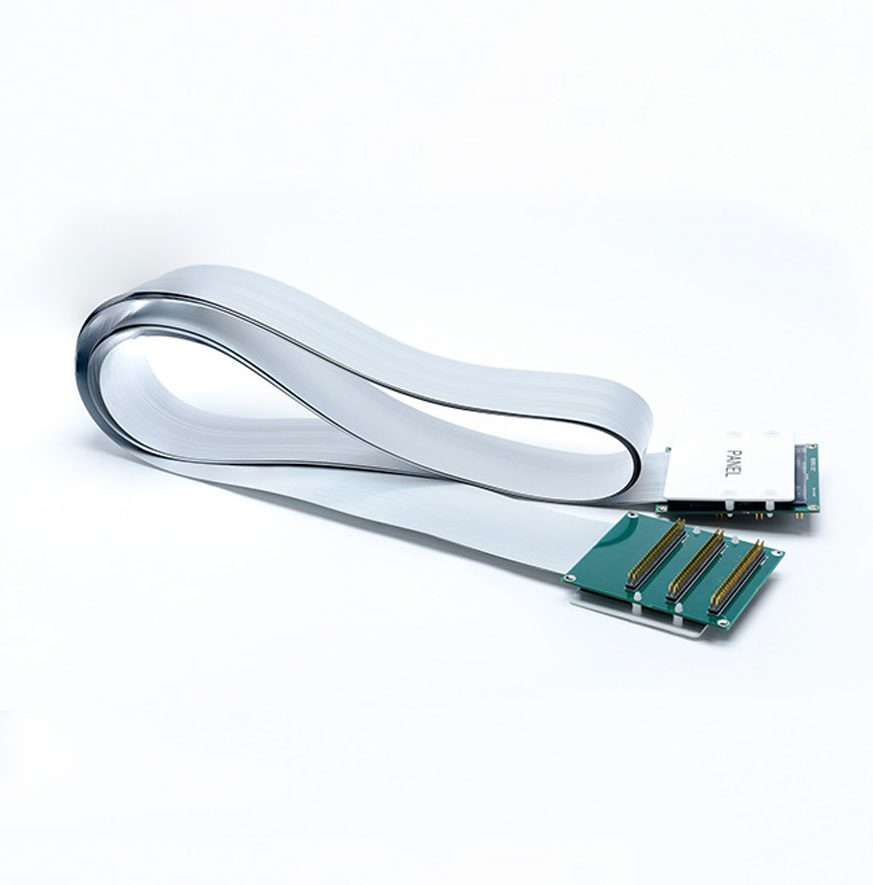

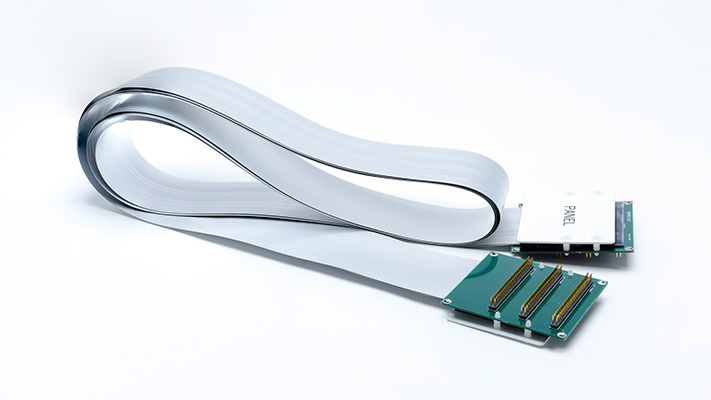

Shielded Multilayer, Mixed Trace FFC to PCB assembly

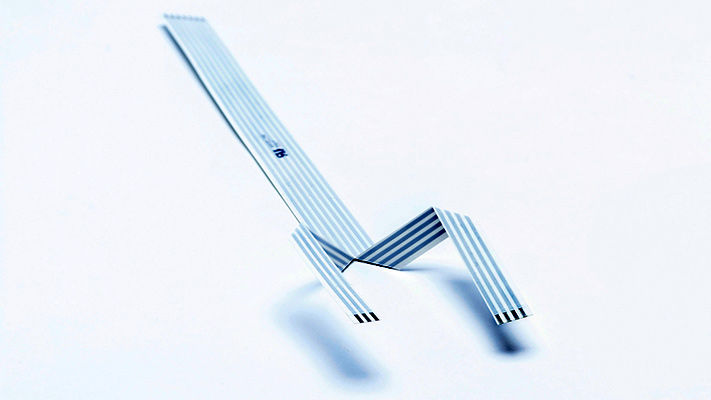

2.54mm FFC with cut and folded ends.

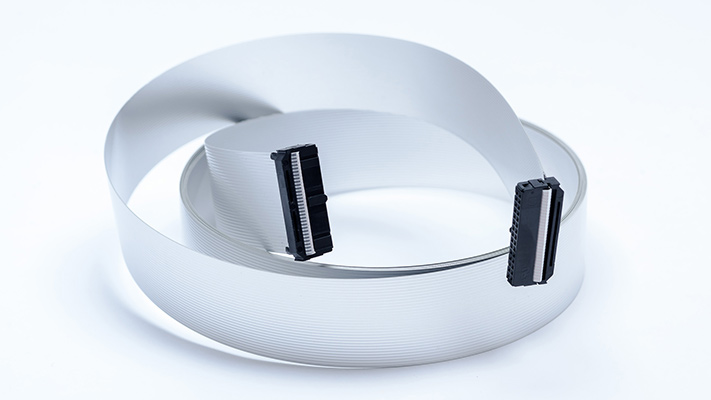

IDC ribbon connector on shielded FFC.

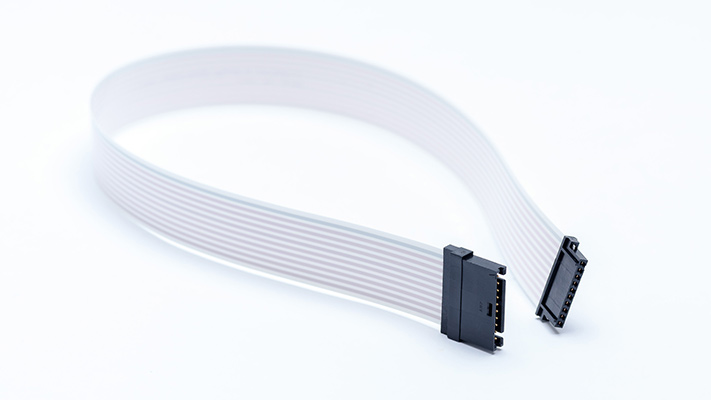

2.54mm Crimped FFC male/female.

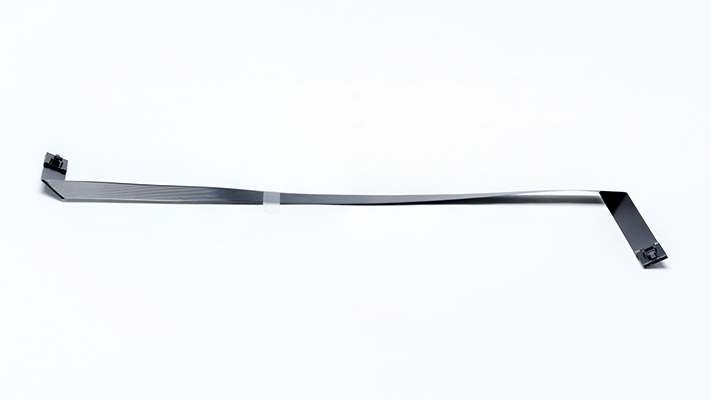

1.27mm crimped FFC with folds and strain relief.

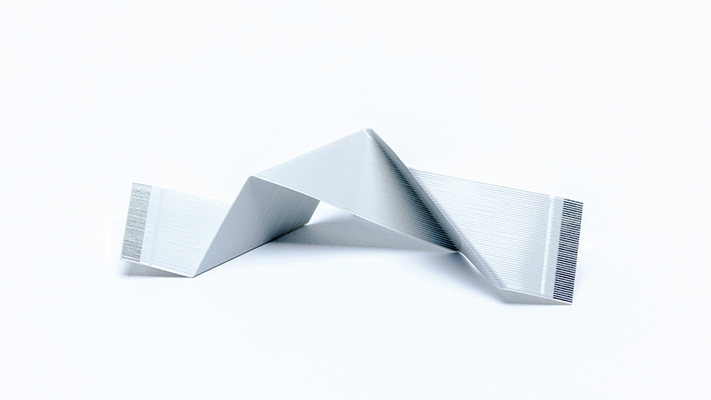

FFC with multiple folds

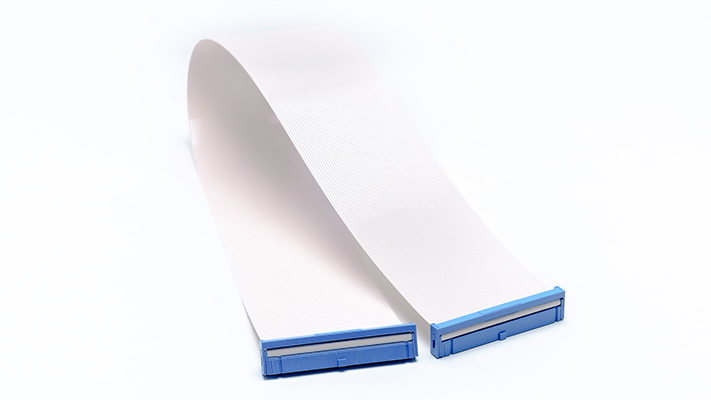

IDC connector on FFC

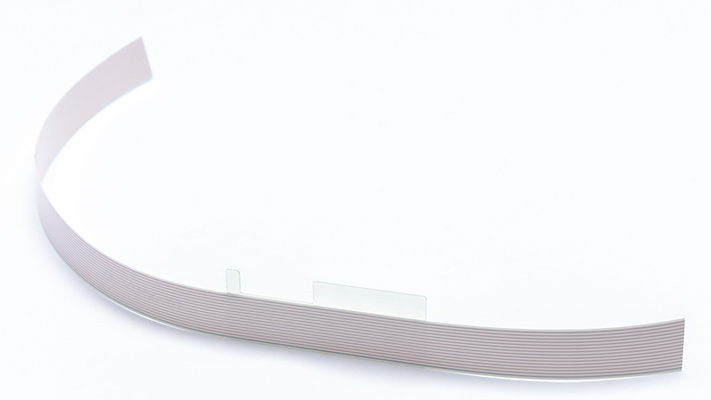

1.27mm FFC with FR4 strain relief bracket

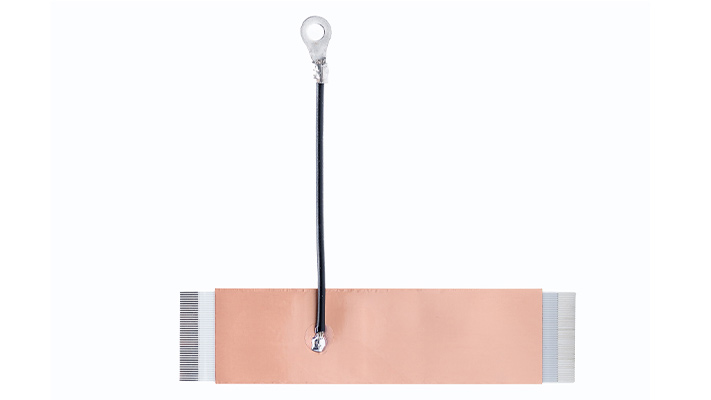

FFC with wrapped copper shield and soldered drain wire.
Shielded FFC with DF9 Hirose connectors and drain wire.
Direct Solder FFC with shield and cover layer.
FPC crimped with receptacle housing.
Accordian Flex Cable

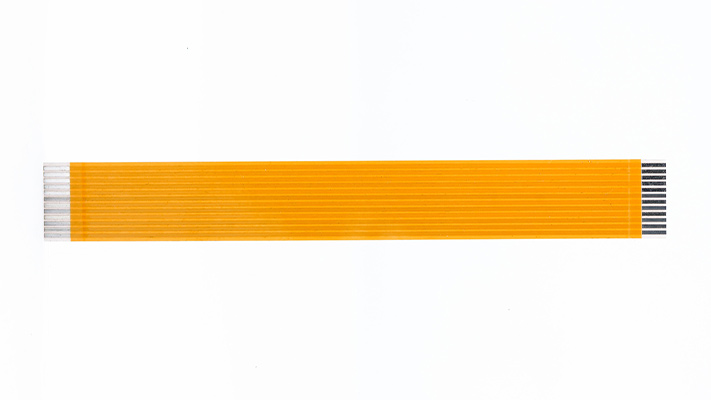

FFC with polyimide insulation

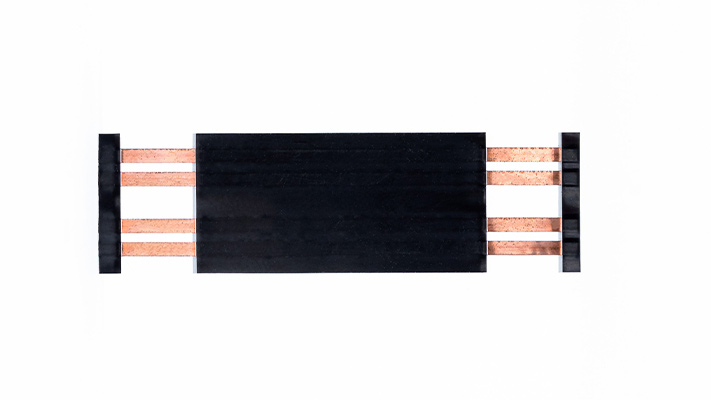

FFC prepared for direct solder to PCB with black insulation.

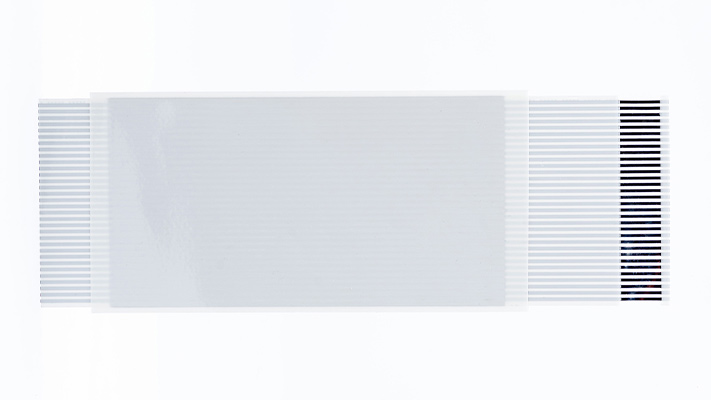

Shielded FFC with cover layer and direct solder termination.
FFC with gold plated contacts and custom notched ends.

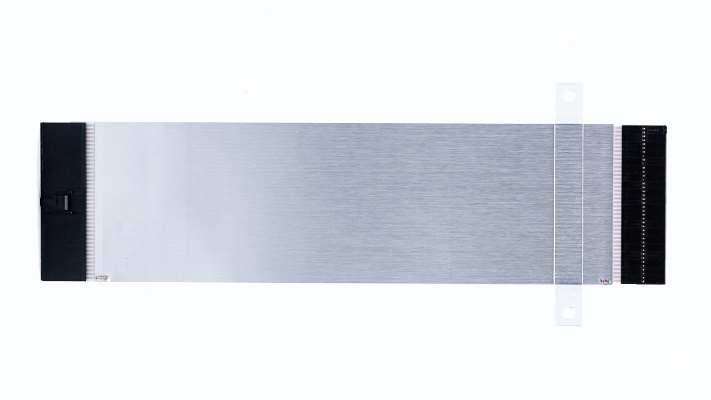

1.27mm FFC with latch style receptacle housing, foild shield, grounding, and pet strain relief.

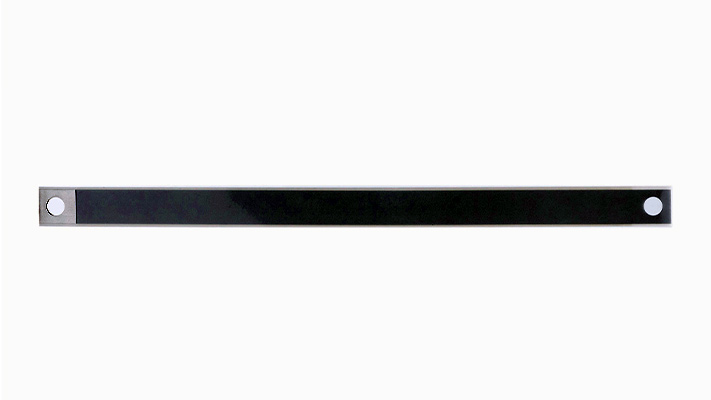

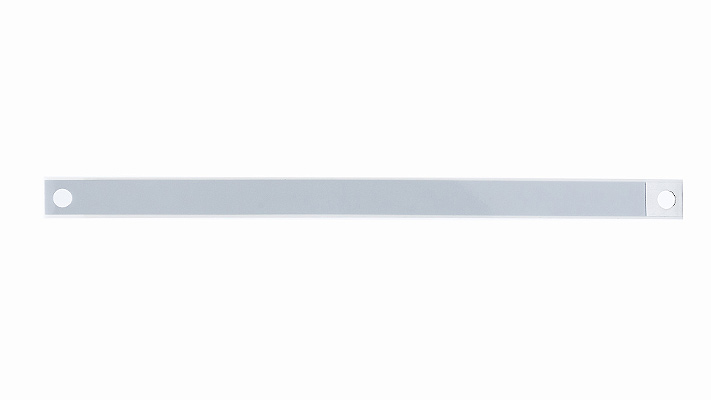

Ground strap with tin plated copper and thru-hole screw mounting.

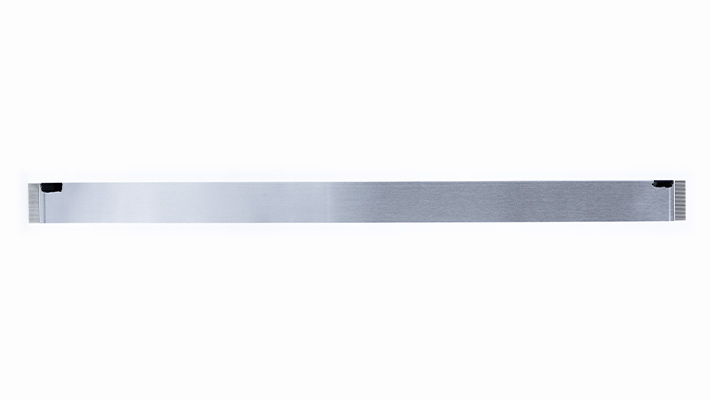

FFC with foil shield and ground locations.

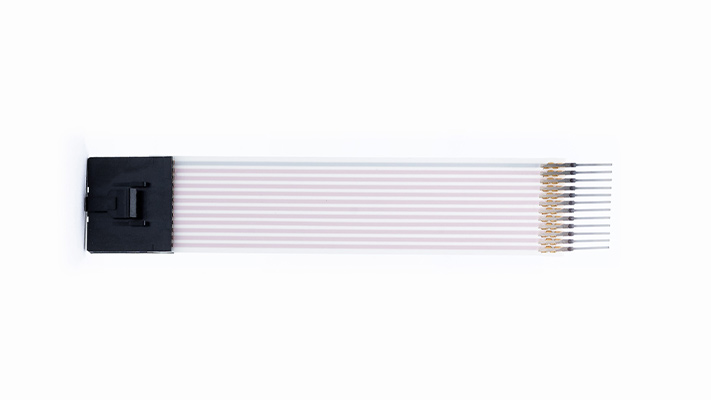

FFC crimped with solder tabs and receptacle housing.
Finished jumpers with multiple constructions and terminations

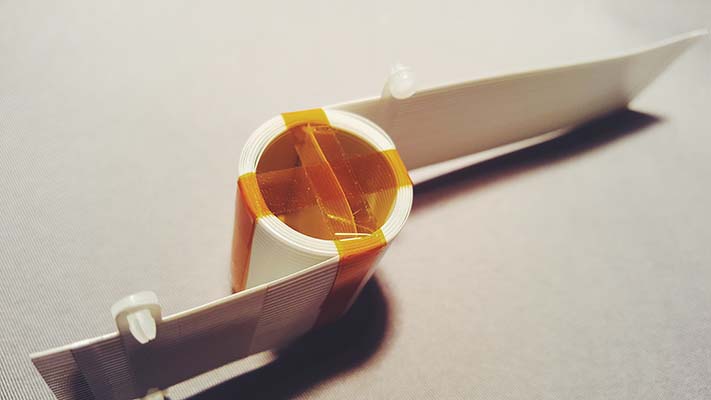

Coil formed clockspring style cable with strain relief and push pin retention

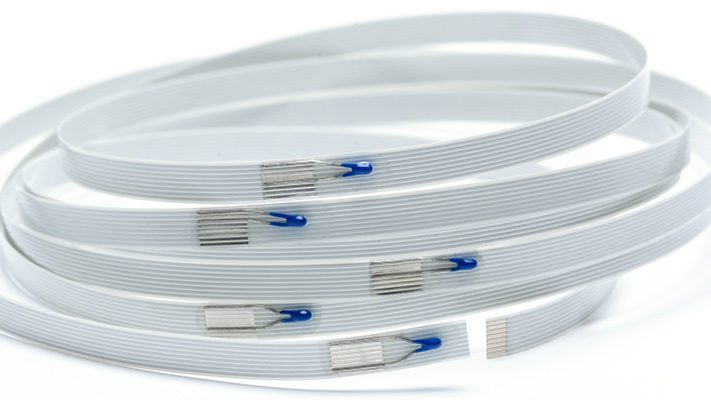

FFC thermistor assembly. thermistors soldered along FFC for temperature measurement.
