WAVELINK FFC CONNECTION OPTIONS
Flat flexible cable (FFC) connectors are specifically designed to interface with flat ribbon cables. These connectors provide a reliable and secure connection. Wavelink offers a variety of FFC connectors and termination methods for our FFC cable, depending on your needs. We also provide custom connections specifically for your application. Contact us for more information.
Standard FCC Options
Hirose DF9 Connectors
- 0.5mm pitch ZIF (Zero Insertion Force) mating jumpers
- 1.00mm pitch ZIF mating jumpers
- 1.25mm pitch ZIF mating jumpers
- 1.27mm pitch ZIF mating jumpers
- 2.54mm pitch ZIF mating jumpers
- Direct solder prepared (double-bare traces for bar or hand soldering to PCB)

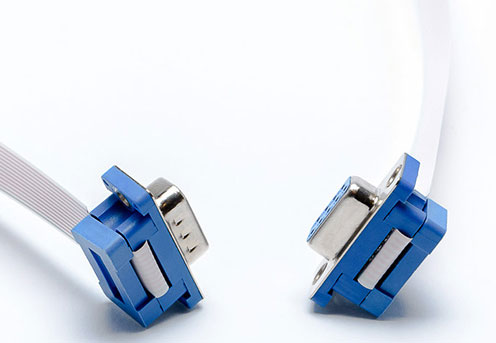

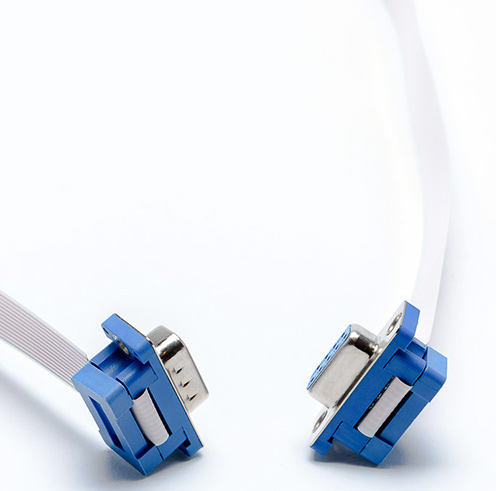

D-SUB Connectors
- 1.27mm pitch crimp terminated jumpers (solder tabs, female, male, with or without housings)
- 2.54mm pitch crimp terminated jumpers
- Hirose DF9
- FH28 Series
- D-SUB
Custom FFC Connectors
Custom FFC
- Surface Mount or Through Hole Components - Soldered directly to the FFC
- Discreet Wires - Directly soldered to one or both ends of an FFC
View a few of our Connectors (click to enlarge) below or visit the Product Gallery.

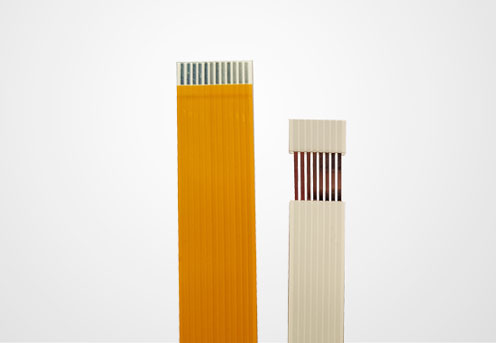

Custom ZIF with locking features

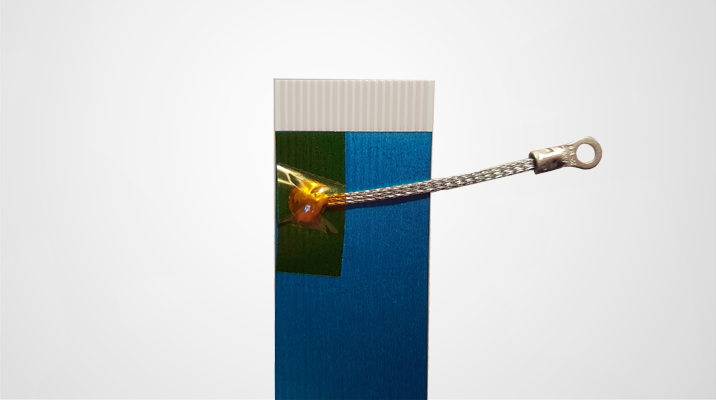

Aluminum foil EMI shield with drain wire

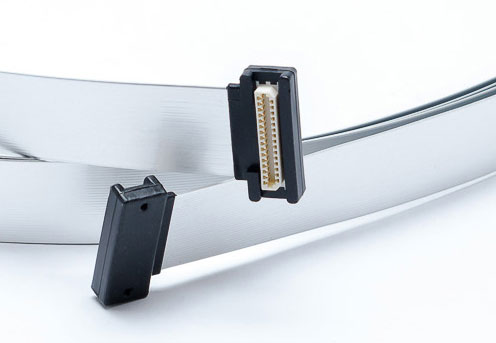

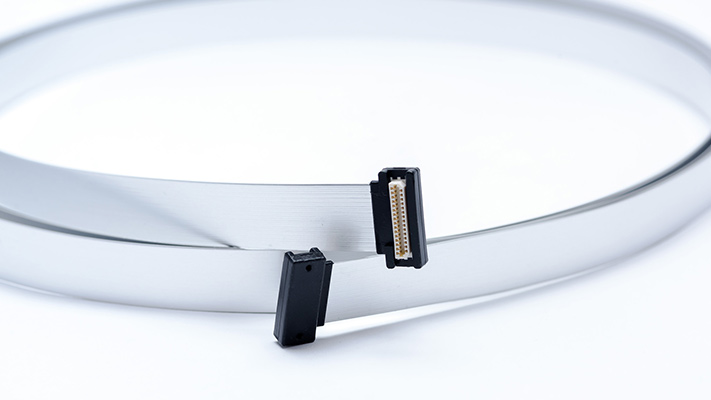

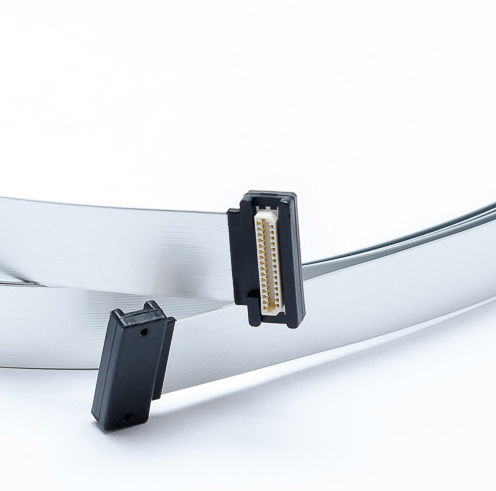

Integrated Hirose DF9 connector

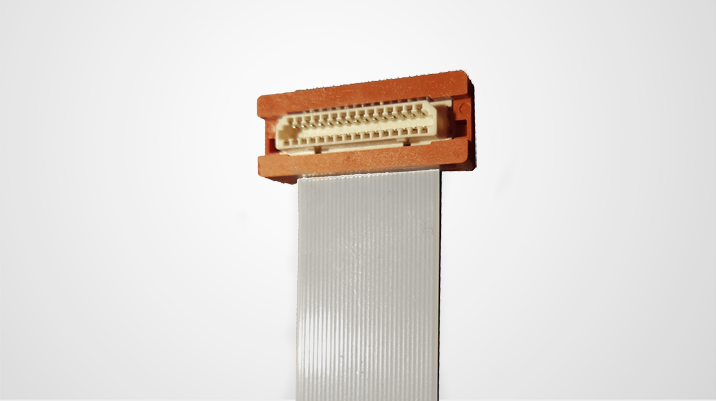

Over Molded Hirose Connector orn shielded FFC.
