FLat Flexible Cable Solutions

View Wavelink’s large variety of cables and connector styles. If you have any questions about what you see or our capabilities, contact us. To view larger images of our product, click on an image.

Wavelink FFC Cable Assemblies

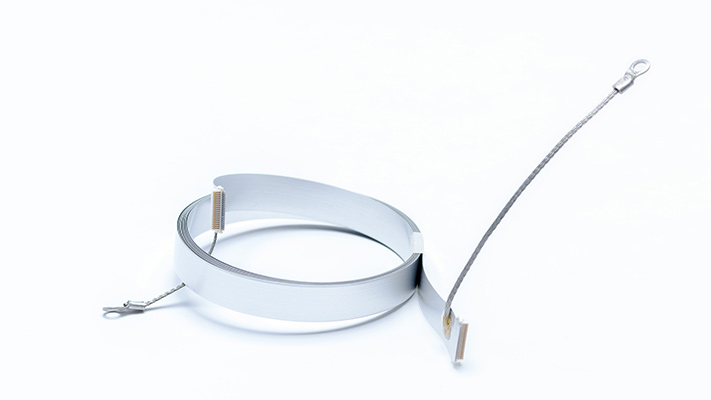

Shielded FFC with DF9 Hirose connectors and drain wire.

Shielded FFC with DF9 Hirose connectors and drain wire.

Direct Solder FFC

Direct Solder FFC with shield and cover layer.

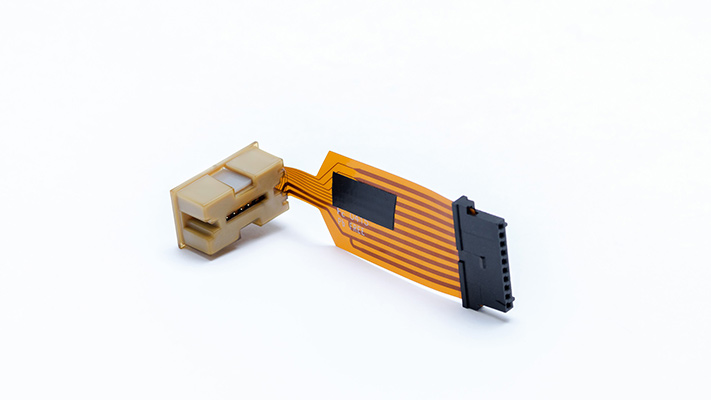

FPC crimped with receptacle housing.

FPC crimped with receptacle housing.

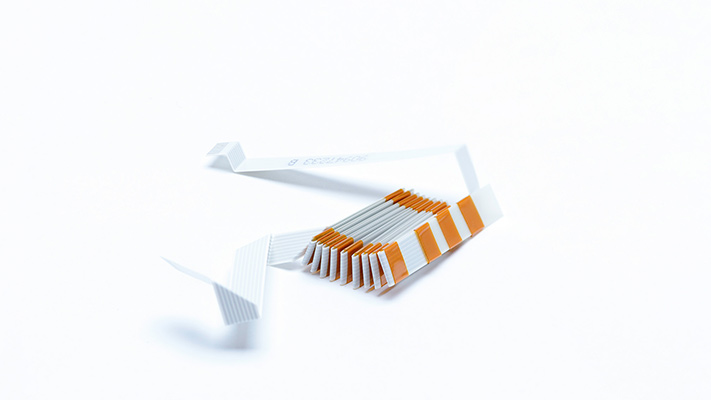

Accordian Flexible Cable

Accordian Flex Cable


Coil Formed Cable

Coil formed cable

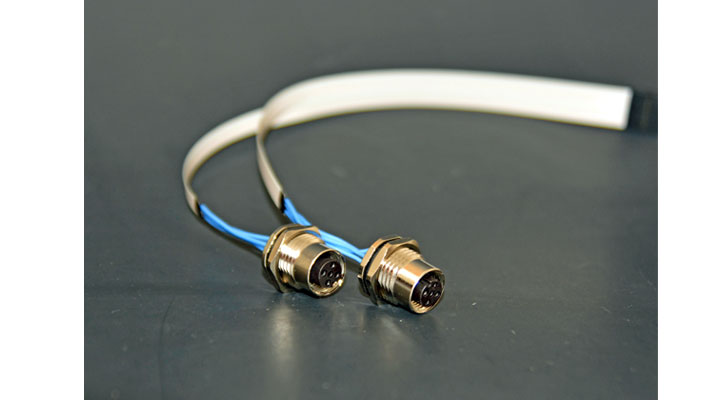

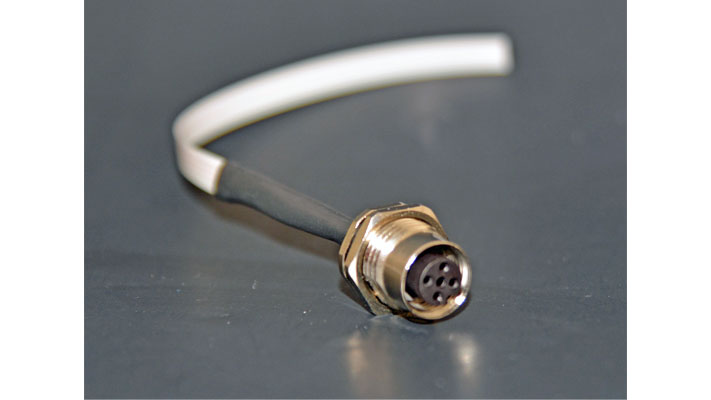

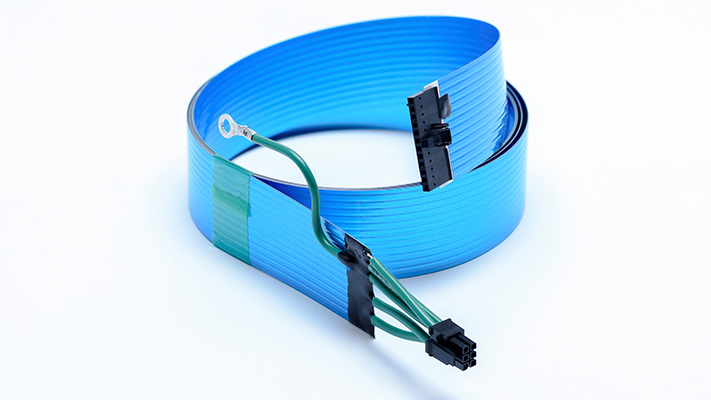

Shielded FFC to discrete wire connector

Shielded FFC to discrete wire connector.

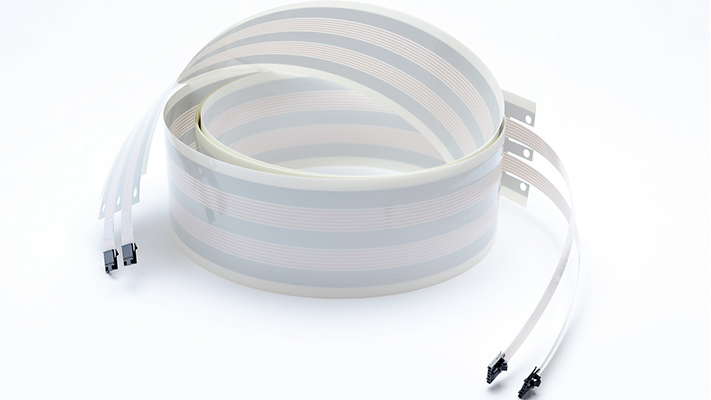

FFC Tension Cable

FFC tension cable, steel reinforced

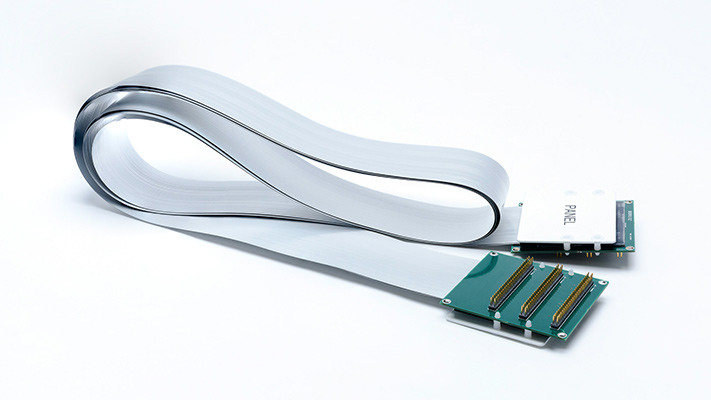

Shielded Multilayer FFC to PCB Assembly

Shielded Multilayer FFC to PCB assembly

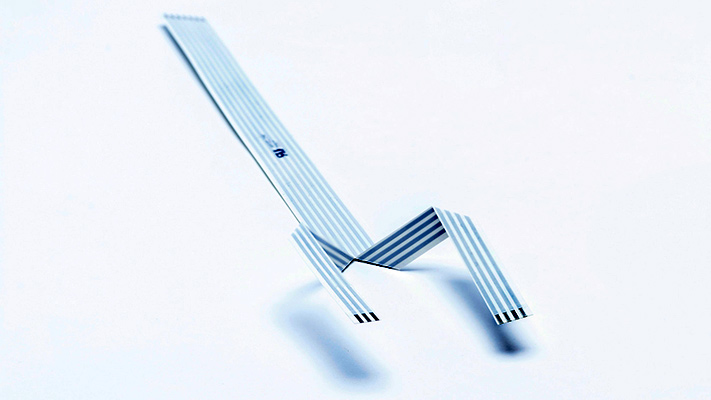

2.54mm crimped FFC with cut and folded ends

2.54mm crimped FFC with cut and folded ends.

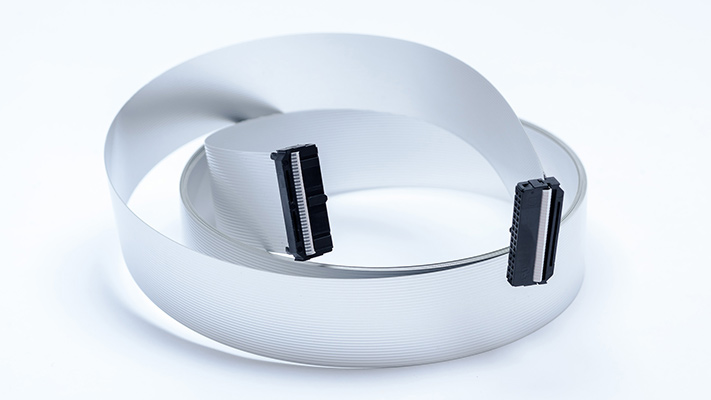

IDC Ribbon connector on shielded FFC

IDC ribbon connector on shielded FFC.

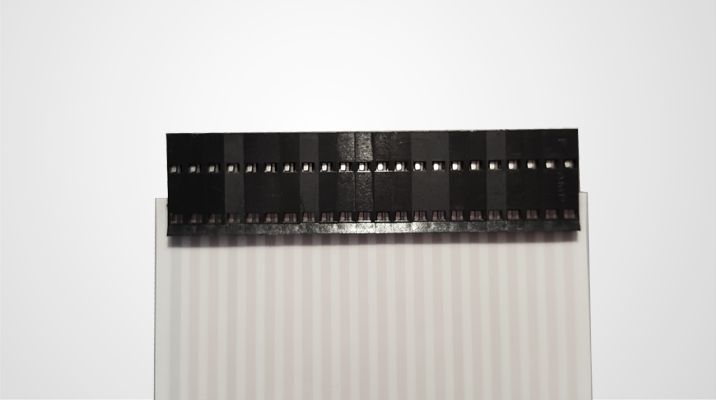

2.54mm crimped FFC male-femal

2.54mm Crimped FFC male/female.

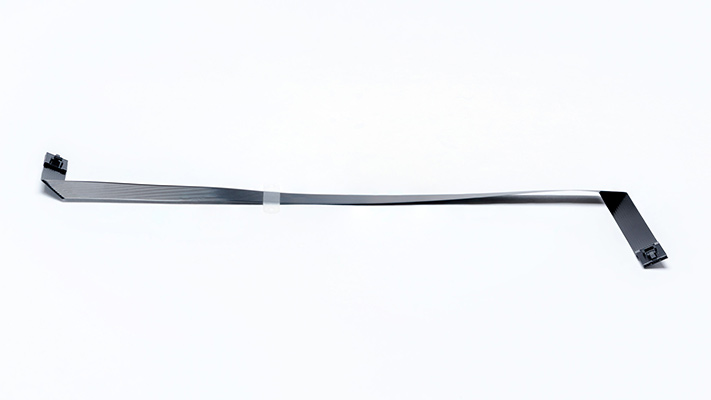

1.27mm crimped FFC with folds and strain relief

1.27mm crimped FFC with folds and strain relief.

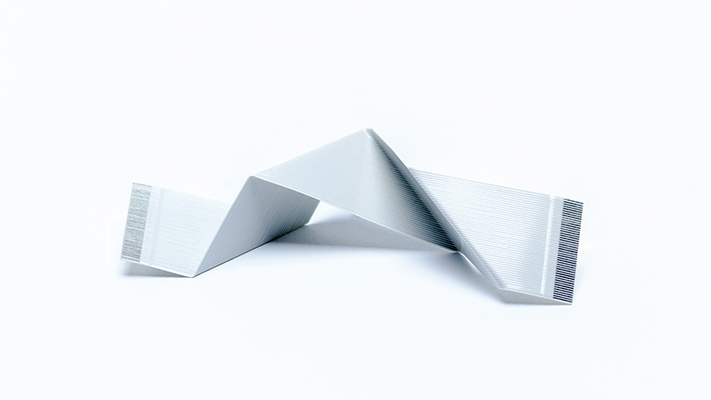

FFC with multiple folds

FFC with multiple folds

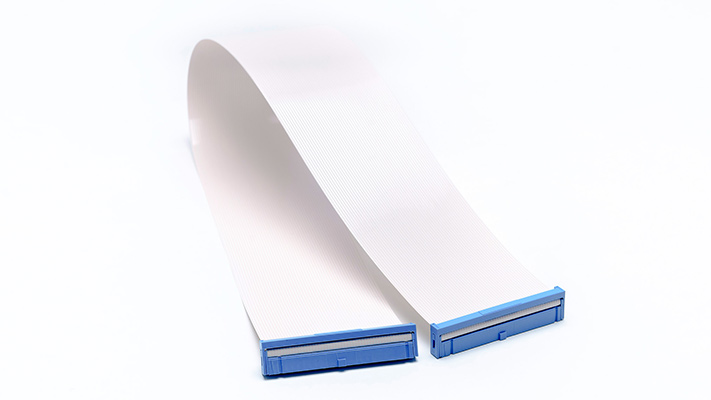

IDC dual row connector on FFC

IDC dual row connecto on FFC

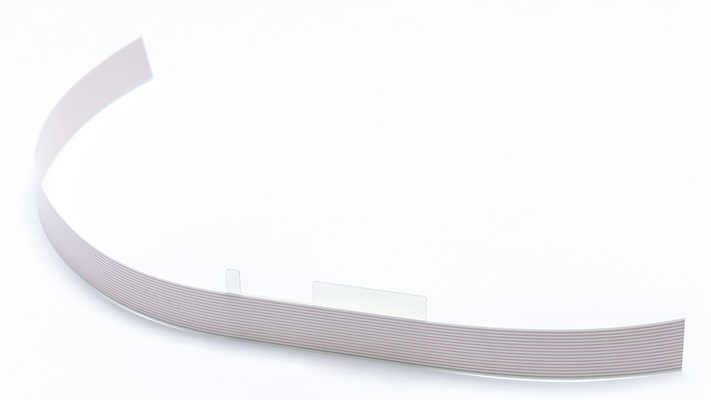

FFC with FR4 stain relief bracket

1.27mm FFC with FR4 strain relief bracket

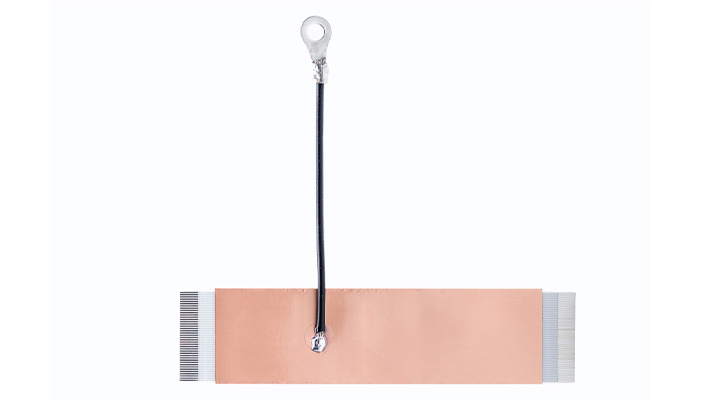

FFC with wrapped copper shield and soldered drain wire

FFC with wrapped copper shield and soldered drain wire.

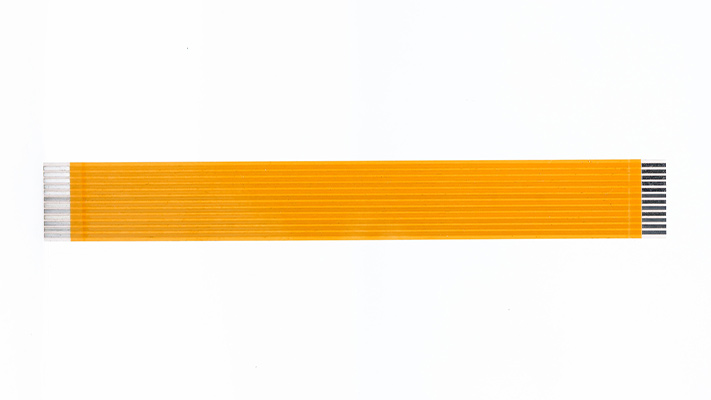

FFC with polyimide insulation

FFC with polyimide insulation

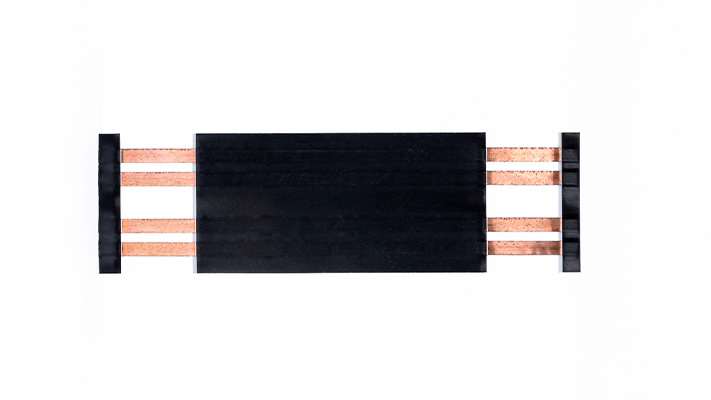

FFC prepared for direct solder to PCB with black insulation

FFC prepared for direct solder to PCB with black insulation.

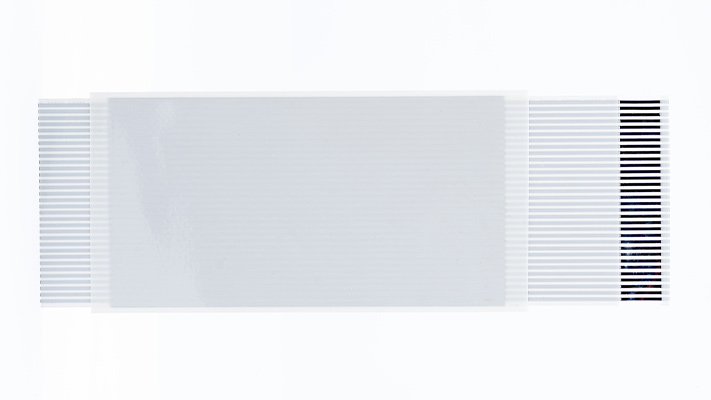

Shielded FFC with cover layer and direct solder termination

Shielded FFC with cover layer and direct solder termination.

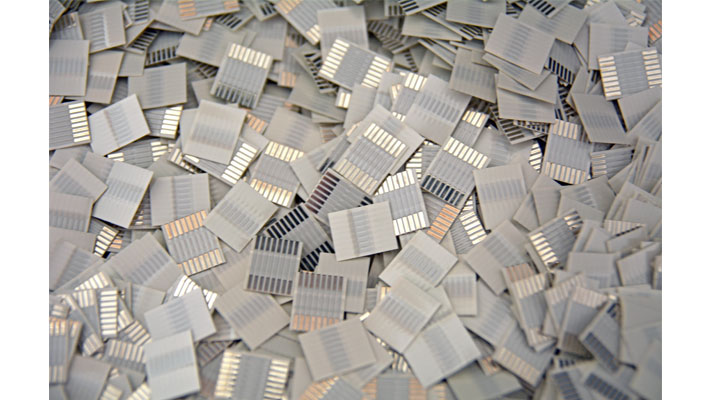

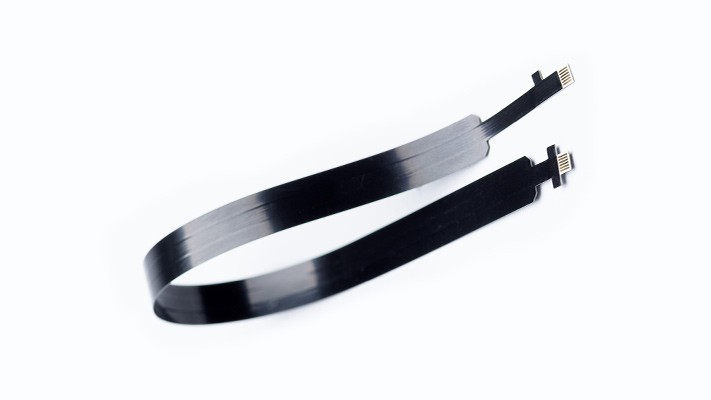

FFC with gold plated contacts and custom notched ends.

FFC with gold plated contacts and custom notched ends.

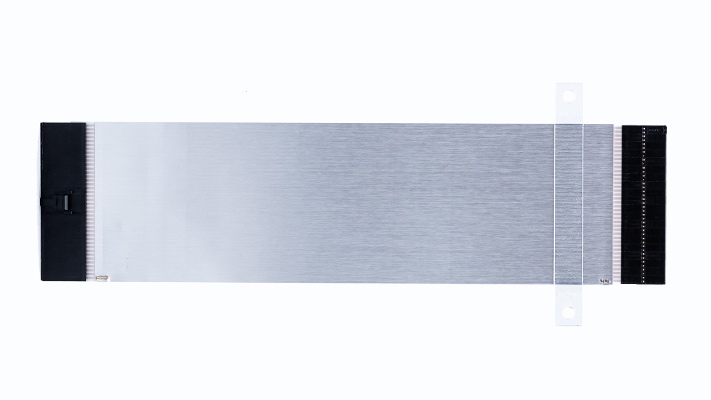

FFC with latch style receptacle

1.27mm FFC with latch style receptacle housing, foild shield, grounding, and pet strain relief.

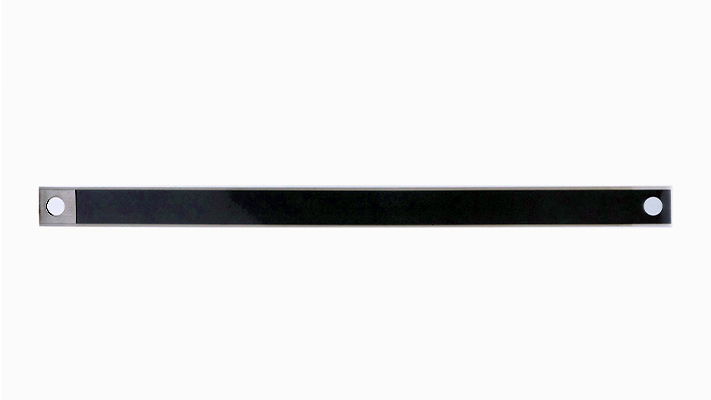

Ground strap with tin plated copper and thru-hole screw mounting.

Ground strap with tin plated copper and thru-hole screw mounting.

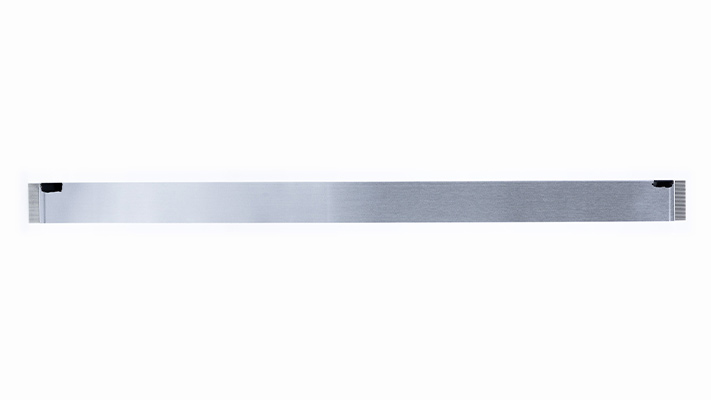

FFC with foil shield and ground locations

FFC with foil shield and ground locations.

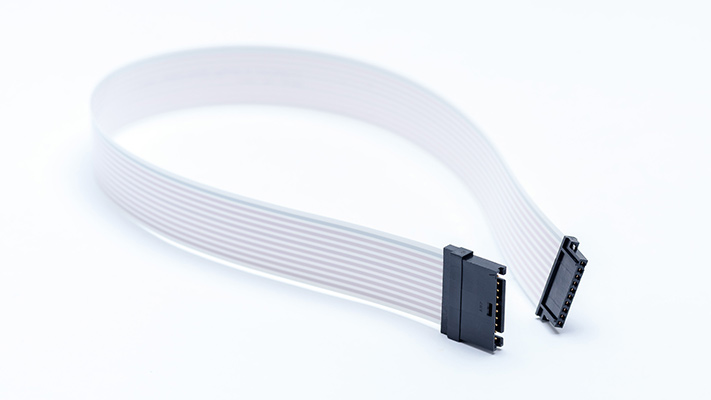

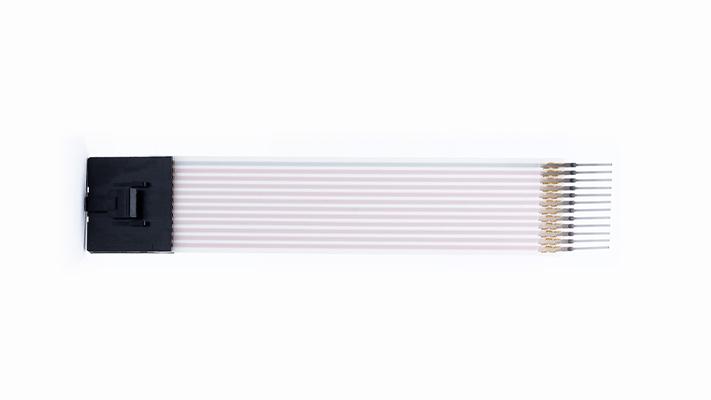

FFC crimped with solder tabs and receptacle housing

FFC crimped with solder tabs and receptacle housing.

Flat Flexible Cable

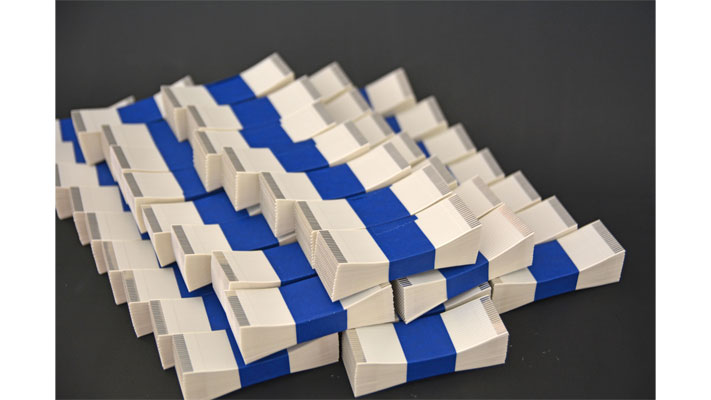

Finished jumpers with multiple constructions and terminations

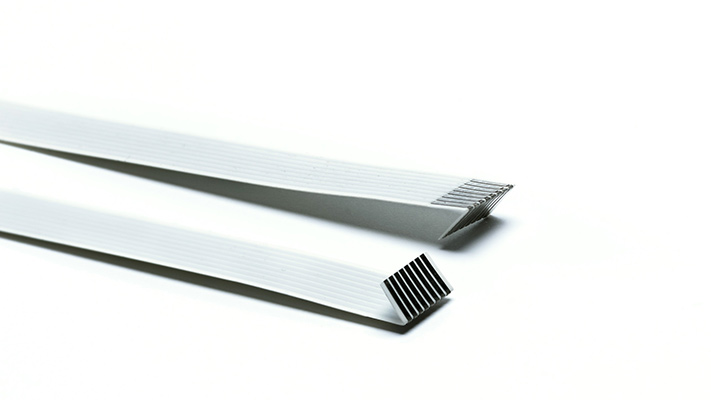

Zif style universal top and bottom termination, Wavelink-EE

ZIF Style universal top and bottom termination, Wavelink-EE.

Flat Flexible Cable

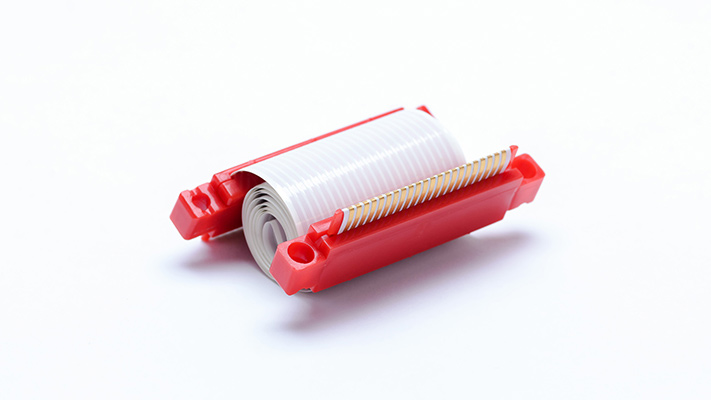

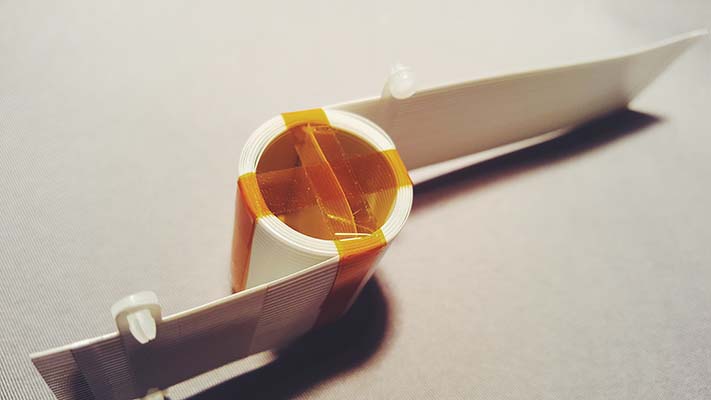

Coil formed clockspring style cable with strain relief and push pin retention

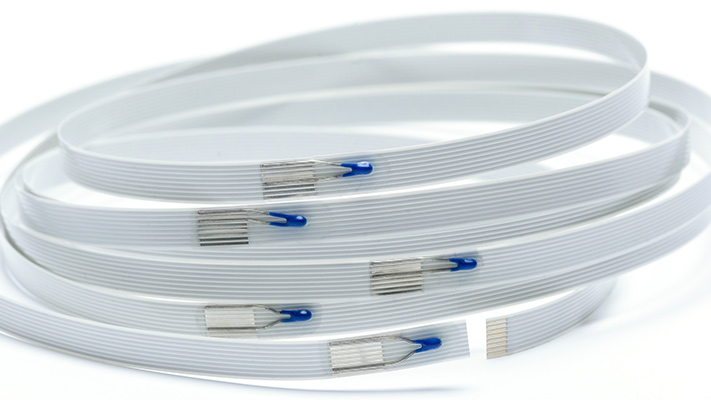

FFC thermistor assembly

FFC thermistor assembly. thermistors soldered along FFC for temperature measurement.

Wavelink FFC Connectors

Flat Flexible Cable

Custom ZIF with locking features

Flat Flexible Cable

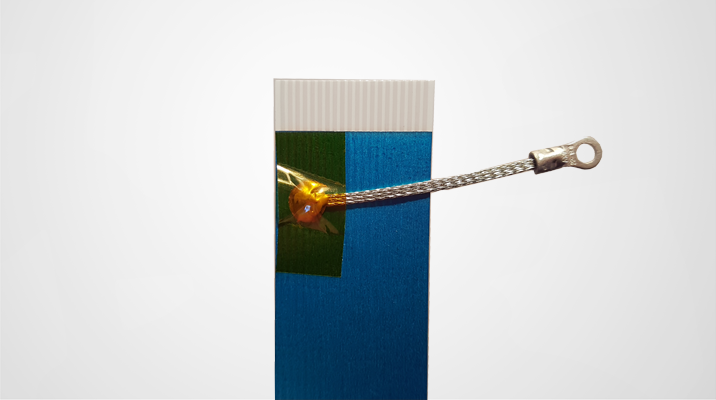

Aluminum foil EMI shield with drain wire

Flat Flexible Cable

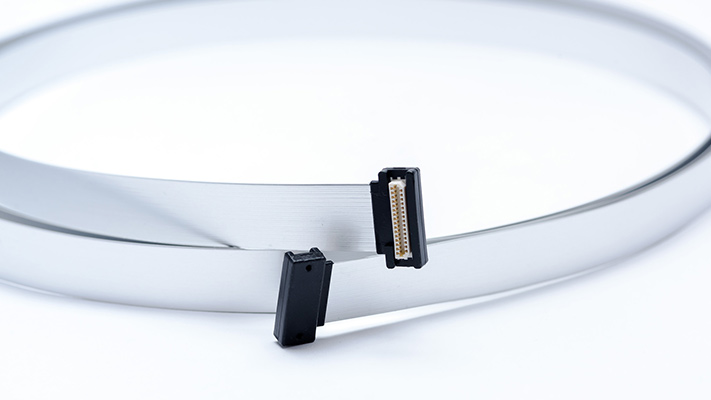

Integrated Hirose DF9 connector

Over Molded Hirose Connector on shielded FFC

Over Molded Hirose Connector orn shielded FFC.

Flat Flexible Cable

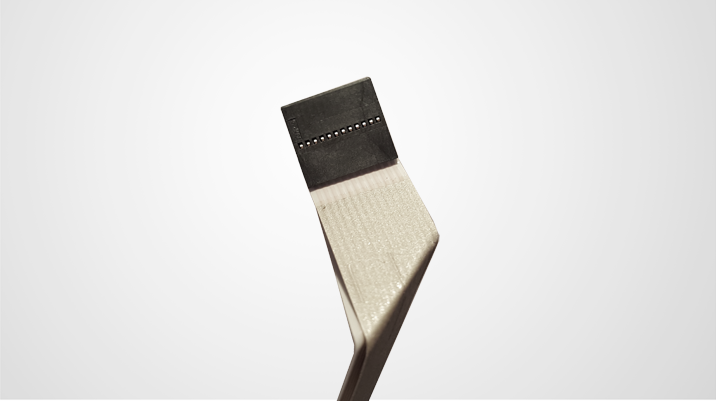

1.27mm Centerline latch style housings


Flat Flexible Cable

2.54mm Centerline plain housing


Flat Flexible Cable

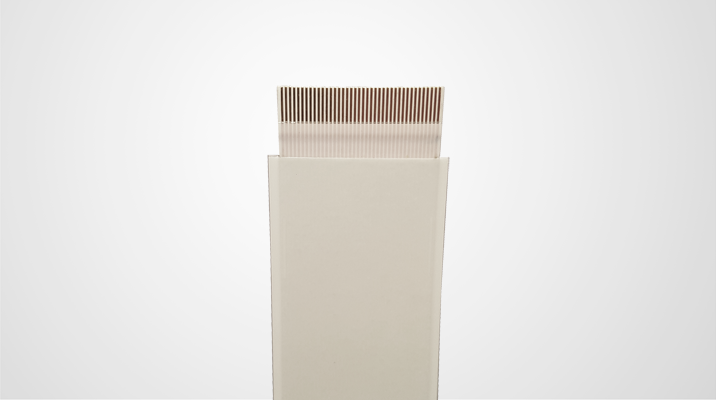

ZIF prepped cable with polyimide film and Direct Solder prepped cable (LS)

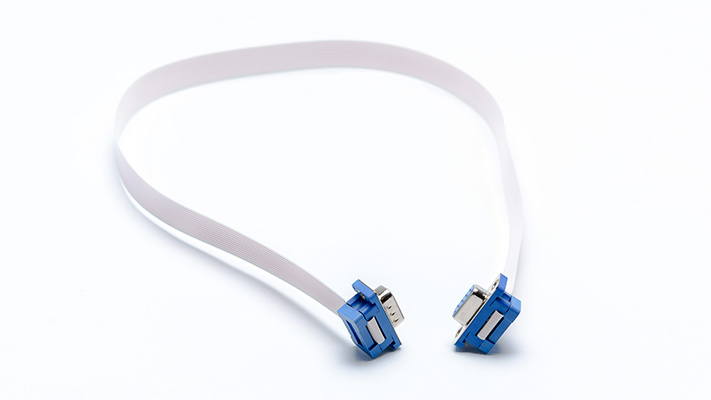

D-Sub 9 pin male and female connectors on FFC

D-sub 9 pin male and female connectors on FFC.


Flat Flexible Cable

ZIF jumper with silver shield and PET cover layer


Flat Flexible Cable

Folded cable with silver EMI shield and internal ground contact

Flat Flexible Cable

ZIF Jumper with silver EMI shield and conformal coat cover layer

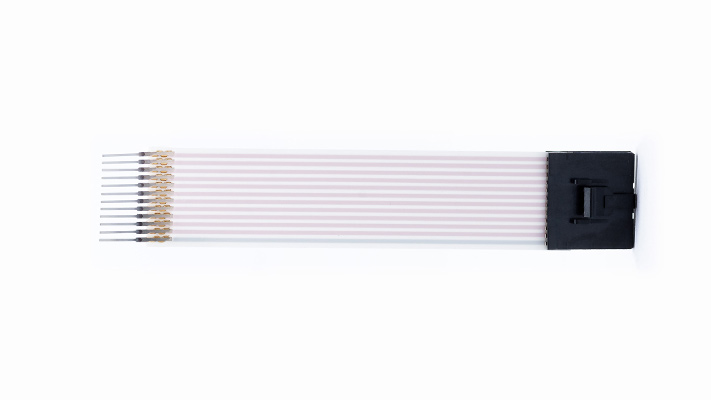

Hirose FH28 prepared FFC with locking ears and gold plated contacts

Hirose FH28 prepared FFC with locking ears and gold plated contacts.
